COFDM Wireless Portable Diversity HD Resolution UAV Video Receiver4 Channels

Product Categories

Shenzhen DingShen Co., Ltd

Contact Now

Brand Name : Ding Shen

Model Number : DS-CM40H

MOQ : 1set

Price : Negotiaiton

Payment Terms : T/T

Supply Ability : Quantity(Sets) 1 - 100000 >100000

Delivery Time : 3-7 working days

Packaging Details : 520*430*210mm

Model Numbe : DS-DRB04

Frequency : 300-900Mhz or other frequency customized

LCD monitor : 17inch

Product name : 4 Channels COFDM HD Video Transmitter Receiver

Contact Now

Specification:

briefcase portable COFDM radios with remote control
Frequency	300-900MHz/1.2G/2.4G/5.8GHz (optional)
Memory	1TB, 4 channel 48 hours recording
LCD monitor	17 inch
RF Level Input	-105dBm~-20dBm
RF Interface	N(F)
AV output	HDMI, CVBS
Modulation	COFDM
Power supply	AC220V / DC12V
Bandwidth	2/2.5/4/8MHz (adjustable)
Constellation	QPSK,16QAM,64QM
FEC	1/2,2/3,3/4,5/6,7/8 (optional)
Guard Interval	1/32,1/16,1/8,1/4 (optional)
Video Output	1 line PAL/NTSC analog video
Video Decoding	H.264/H.265
Resolution	1080P; 720P
Audio Output	Analog stereo left and right channels
Data encryption	AES 128/256 bits
Voltage	AC220V±20V, DC14V~DC16V
Work environment	-30~70°C
Built in Battery	14.8V, 10.2Ah, support 4ch 48 hours recording
Size	520430210mm
Weight	22kg

COFDM Wireless Portable Diversity HD Resolution UAV Video Receiver4 Channels

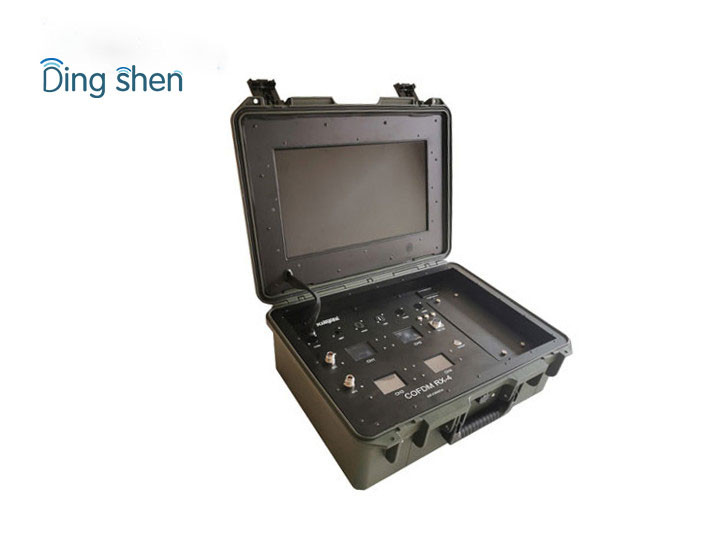

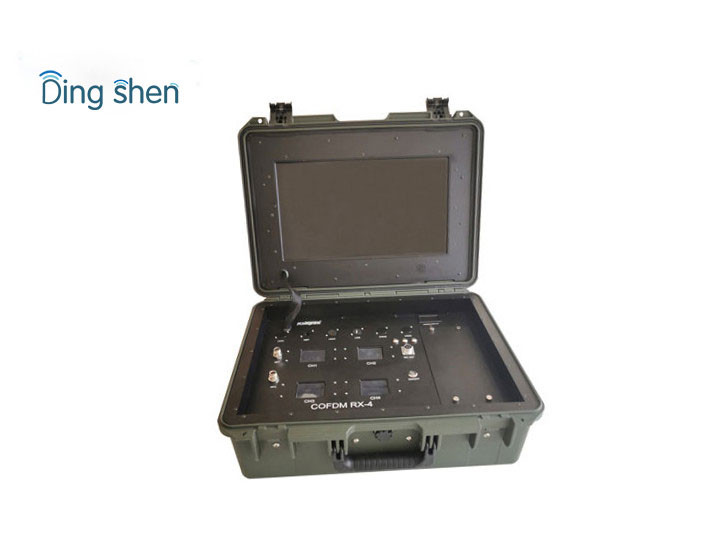

COFDM Wireless Portable Diversity HD Resolution UAV Video Receiver4 Channels Images
